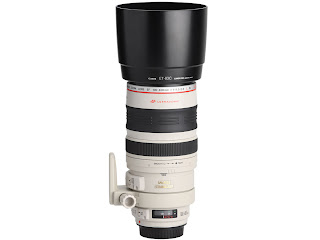

Canon EF 100-400mm f4.5-5.6L IS USM Super Telephoto Zoom Lens Technical Specs


L-SERIES SUPER TELEPHOTO ZOOM LENS EQUIPPED WITH AN IMAGE STABILIZER. THE FLUORITE AND SUPER UD-GLASS ELEMENTS LARGELY ELIMINATE SECONDARY SPECTRUM. THE FLOATING SYSTEM ALSO ENSURES HIGH PICTURE QUALITY AT ALL FOCAL LENGTHS. THE IMAGE STABILIZER HAS TWO MODES AND IT IS COMPATIBLE WITH EXTENDERS 1.4X II AND 2X II.

Estimated Retail Price
$1,699.00
Focal Length & Maximum Aperture
100-400mm 1:4.5-5.6
Lens Construction
17 elements in 14 groups
Diagonal Angle of View
24° - 6° 10'
Focus Adjustment
Rear focusing system with USM
Closest Focusing Distance
1.8m/ 5.9 ft.
Zoom System
Linear extension Type
Filter Size
77mm
Max. Diameter x Length, Weight
3.6" x 7.4", 3.1 lbs. / 92mm x 189mm, 1,380g
