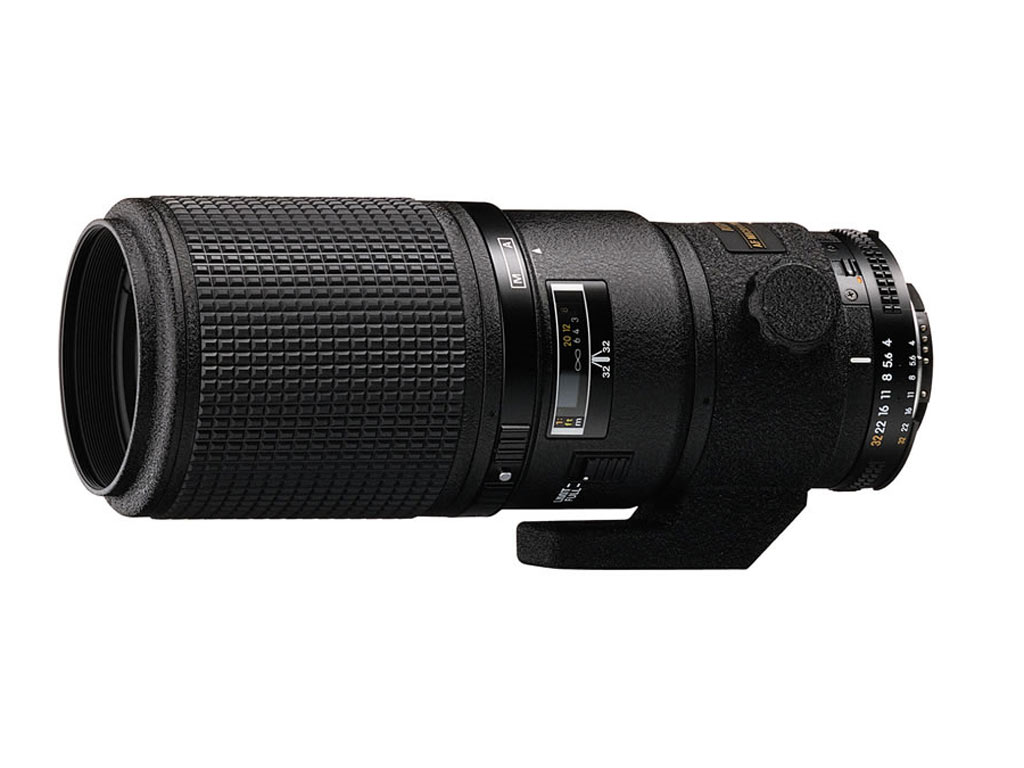

AF Micro-Nikkor 200mm f/4D IF-ED Features & Technical Specs

10.2-INCH WORKING DISTANCE (FRONT OF THE LENS TO THE SUBJECT) FOR EASY CLOSE-UPS OF INSECTS AND SMALL ANIMALS

KEY FEATURES
ü  Legendary in the world of close-up photography, superior Micro Nikkor performance delivers images of striking clarity while providing reproduction ratios of up to 1:1 without additional accessories.
ü  Extra-low Dispersion (ED) glass ensures apochromatic-like performance with high contrast and sharper images.
ü  Focuses from infinity to 19.4 inches (1:1 reproduction ratio).
ü  The extra-long focal length of this lens provides the most versatile working distance.
ü  Internal Focusing (IF) improves handling and focusing operation.
ü  A/M (Automatic/Manual) switch.

Estimated Retail Price
$1,794.95
Mount Type
Nikon F-Bayonet
Focal Length
200mm
Maximum Aperture
f/4
Minimum Aperture
f/32
Format
FX/35mm
Maximum Angle of View (DX-format)
8°
Maximum Angle of View (FX-format)
12°20'
Maximum Reproduction Ratio
1.0x
Lens Elements
13
Lens Groups
8
Compatible Format(s)
FX
DX
FX in DX Crop Mode
35mm Film
Diaphragm Blades
9
Distance Information
Yes
ED Glass Elements
2
Super Integrated Coating
Yes
Autofocus
Yes
Internal Focusing
Yes
Minimum Focus Distance
1.6 ft. (0.5m)
Close Range Correction
Yes
Focus Mode
Auto
Manual
Filter Size
62mm
Accepts Filter Type
Screw-on
Dimensions
(Approx.) 3.0x7.6 in. (Diameter x Length)
76x193mm (Diameter x Length)
Weight
(Approx.) 41.8 oz. (1185g)
Supplied Accessories
·         CL-45 Case
·         62mm lens cap
·         Rear lens cap
