Altec Lansing Octane 7 - VS4621 Speakers Technical Specs

LIVE LARGE, LIVE LOUD, WITH POWERFUL SOUND
Four 1” (28 mm) high-frequency micro drivers
Two 3” (75 mm) mid-bass drivers
One 6.5” (165 mm) side-firing subwoofer
Sound Pressure Level (SPL): 95 dB
Total Continuous Power: 28 Watts RMS
Each Speaker: 7.5 watts per channel
@ 8 ohms @ 10% THD @150 Hz to 20 kHz
Subwoofer: 13 watts @ 4 ohms @ 10% THD
@30 Hz to 150 Hz Single Channel Loaded
System Response: 40 Hz – 15 kHz (-10 dB)
Signal to Noise Ratio @ 1 kHz input: > 70 dB
Satellite Dimensions:
4.3” (Diameter) x 10.1” (H)
110 mm (Diameter) x 258 mm (H)
Subwoofer Dimensions:
12.3” (W) x 6.5” (D) x 10.8” (H)
313 mm (W) x 166 mm (D) x 275 mm (H)

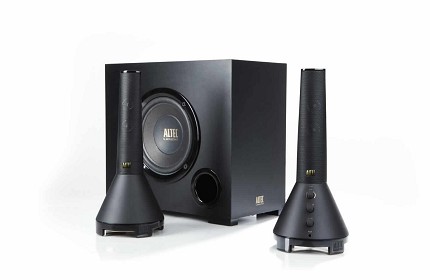

Altec Lansing VS4621 Octane 7, 2.1 Computer Speaker
